Hammer - Steam Traps
Hammer Steam Traps ensure efficient condensate removal. Available in bucket, TD, and float types, IBR-certified, with sizes from 15mm to 50mm.
Hammer Steam Traps
Hammer Steam Traps are designed to efficiently remove condensate, air, and other non-condensable gases from steam systems while preventing steam loss. Built for reliability and energy efficiency, our IBR-certified steam traps help improve the performance of steam pipelines, boilers, and industrial heating systems.

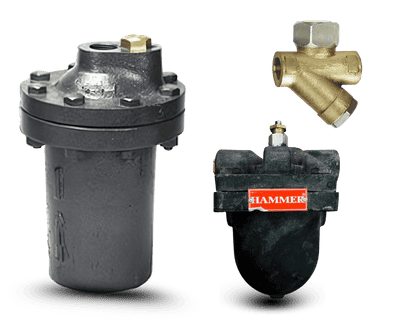

Types of Hammer Steam Traps
Hammer offers three types of steam traps, each designed for specific applications:
- Bucket Type Steam Traps (Horizontal & Vertical) – Uses an inverted bucket mechanism to discharge condensate while retaining steam. Suitable for high-pressure and superheated steam applications.
- Thermodynamic (TD) Steam Traps – Simple and compact design that operates on the principle of dynamic pressure changes, making it ideal for high-pressure steam systems.
- Float Type Steam Traps – Uses a ball float mechanism to automatically drain condensate while preventing steam loss, ensuring continuous flow and energy efficiency.
Materials & Construction Of Hammer Steam Traps
Hammer Steam Traps are constructed using high-quality materials to ensure durability and performance:
- Cast Iron (CI): Cost-effective and widely used in general steam applications.
- Carbon Steel (CS): High-strength material, suitable for high-pressure and temperature conditions.
- Investment Casting (IC): Offers precision and high corrosion resistance, making it ideal for critical steam control applications.
- Forged Carbon Steel (FCS): Enhanced strength and durability for extreme industrial conditions.
- Gunmetal (GM): Resistant to corrosion and wear, making it ideal for marine and water-based steam systems.
- Ends: Available in Screwed connections for easy installation.
- Certification: IBR Approved, ensuring compliance with steam system regulations.
- Size Range: 15mm (1/4″) to 50mm (2″), covering a wide range of industrial needs.
Technical Specifications Of Hammer Steam Traps
|
Features
|
Specification
|
|---|---|
|
Types Of Steam Traps
|
Bucket (Horizontal & Vertical) | TD | FLOAT
|
|
Material Of Casting
|
CI, CS, IC, FCS & GM
|
|
Ends
|
Available In Screwed
|
|
Certification
|
IBR
|
|
Size
|
15mm(1/4") To 50mm(2")
|
|
Brands
|
We also have this product available in WJ NETA , SANT, & RMW
|
Comprehensive Steam Trap Performance and Specifications
Hammer Steam Traps are engineered for efficient condensate drainage, energy conservation, and long-lasting performance. Whether you’re looking for an inverted bucket steam trap, thermodynamic steam trap, or float-type steam trap, our solutions ensure that steam loss is minimized while maintaining optimal system pressure.
These boiler steam traps prevent water hammer, improve heat transfer, and enhance system efficiency, making them an essential component in steam-based heating, power, and processing industries. With a robust design and durable materials, Hammer Steam Traps handle high temperatures, varying steam loads, and demanding industrial environments with ease.
Industry Applications Of Hammer Steam Traps
Hammer Steam Traps are widely used in industries such as:
- Boiler & Steam Systems – Efficient removal of condensate to prevent damage and improve efficiency.
- Textile & Paper Industry – Ensuring consistent steam supply for drying and processing applications.
- Food & Pharmaceutical – Supporting sanitary steam processes for controlled heating.
- Chemical & Petrochemical Plants – Managing high-pressure steam to optimize production efficiency.
- Power Plants & HVAC Systems – Enhancing heat exchange efficiency while reducing energy loss.
Advantages of Choosing Hammer Steam Traps
By choosing Hammer Steam Traps, you get:
- Energy Efficiency – Reduces steam loss, saving energy and operating costs.
- Reliable Performance – Designed to handle fluctuating steam loads with consistent operation.
- Durable Construction – Made from high-quality materials for long-lasting performance.
- Wide Range of Options – Available in bucket, thermodynamic, and float types to suit different applications.
- IBR-Certified Quality – Ensures safety and compliance with industry regulations.
